VTH2521G | דגם יצרן |
מוניטור מגע "7 – שחור | תאור מוצר |
7" TFT 1024X600 Capacitive | מסכים/רזולוציה |
אינו מכיל זיכרון | קיבולת זיכרון ( MAX ) |
10M/100Mbps | רשת |
12V DC, PoE)802.3af( | מתח נדרש |
13.6X18.6X2.6 | מידות בס"מ |

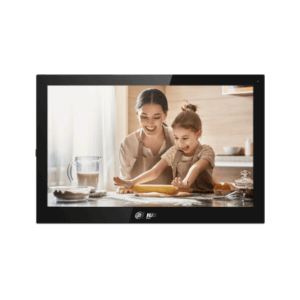

IP Indoor Monitor
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | Embedded processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System | Embedded Linux operating system | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | SIP; IPv4; RTSP; RTP; TCP; UDP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Screen Type | Capacitive screen | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display | 7" TFT display | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 1024 (H) × 600 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression | G.711A; G.711U; PCM | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | Built-in speaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Mode | Two-way voice call | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Enhancement | Echo suppression; digital noise reduction (select as needed) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate | 16KHz, 16Bit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Information Release | Receive and view the published information from the management center | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DND Mode | Set DND period | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Extension Quantity | Villa: 9 extensions Apartment: 4 extensions |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input | 6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Bell | Yes (use the alarm input port) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | 1 RJ-45 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SOS | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | PC+ABS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color | Black with silver frame | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | Standard PoE, 12V DC 1A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Adapter | Optional | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Surface Mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessory | Bracket and alarm ribbon cable (included) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 134.6 mm × 189.6 mm × 26.0 mm (5.30" × 7.46"× 1.02") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | -10°C to +55°C (+14°F to +131°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 10%RH–95%RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | ≤ 4W (standby); ≤ 6W (working) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.35 kg (0.77 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.55 kg (1.21 lb) |
