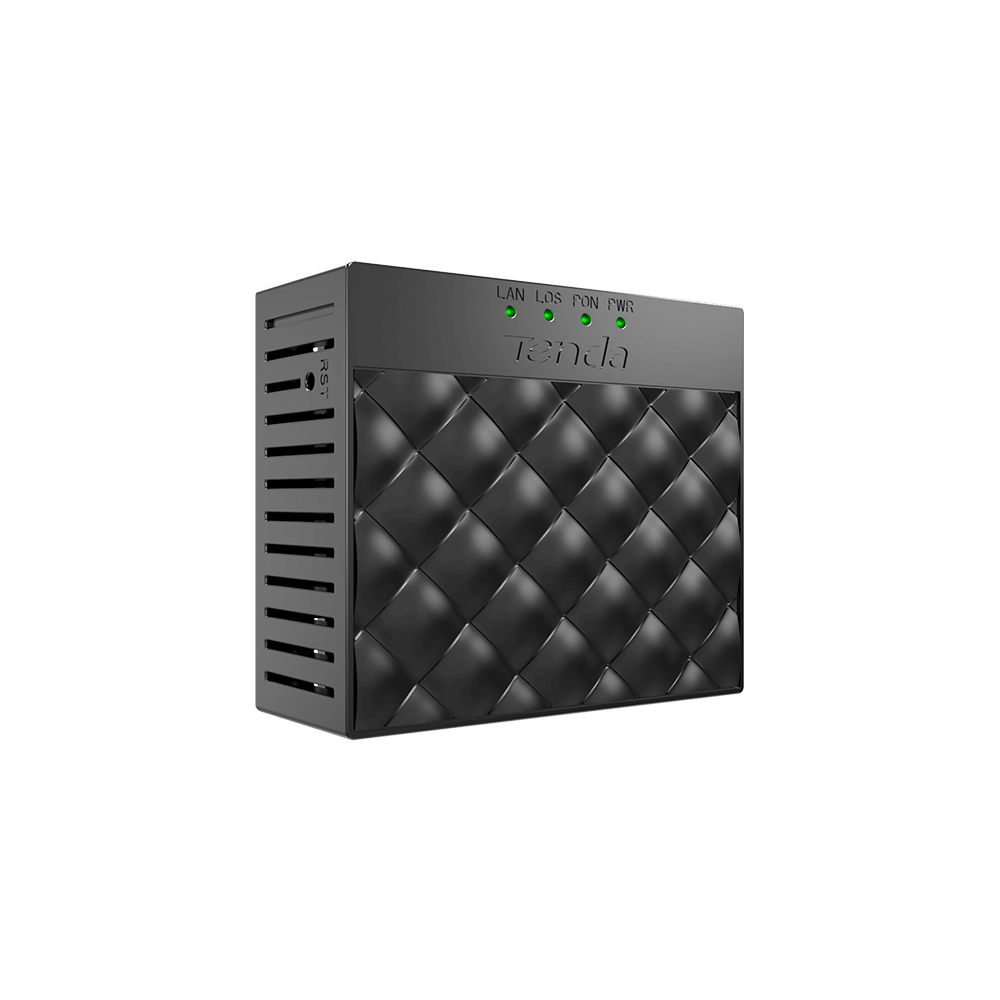

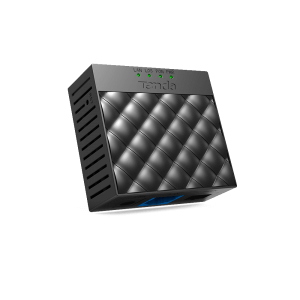

Single Port GPON ONT

המחיר שלנו

מק"ט HG1 קטגוריה PON ONT תגית Single Port GPON ONT מותג: TENDA

מחיר משלוח: דואר שליחים עד 5 ק"ג: ₪50

202011061424546346

202011061425079494

202011061425084135

התמונות באתר להמחשה בלבד

יש לעיין במפרט טכני יצרן

תיאור

Main Features

• Compliant with ITU-T G.984 standard.
• Upstream rate up to 1.25Gbps, downstream rate up to 2.5Gbps and transmission distance up to 20Km.
• Extensive compatibility with lots of OLT brands worldwide.
• Supports for OMCI and TR069 remote management.
• Supports routing mode and bridge mode access.
• Supports both IPV6 and IPV4/IPV6 dual stacks
• Gigabit LAN port is provided to ensure ultra-high speed data transmission.
• Local Web management and optical power monitors.

Comprehensive network compatibility

Compliant with ITU-T G.984 standard, HG1 has extensive compatibility with lots of OLT brands worldwide.

100 times faster than conventional 24Mbps ADSL

Downstream rate up to 2.5Gbps which is 100 times faster than conventional 24Mbps ADSL brings freewheeling internet access.

Gigabit LAN port supports ultra-fast data transmission

1 Gigabit wired LAN port supports ultra-fast data transfer. HG1 can bring freewheeling internet access,making it a great choice to build multimedia entertainment network easily.

Specification

IEEE Standards

–

GPON Standards

ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4

1*SC/APC GPON Port, 1*1000Mbps RJ45 LAN Port, 1*DC Port

LAN，LOS，PON，PWR

Button

1 RESET Button

Optical Mode

Class B+

Optical Wavelength

Transmit at 1310nm, Receive at 1490nm

Transmission Distance

20km Max

Upstream 1.25Gbps Max, Downstream 2.5Gbps Max

59*57*23mm(W*D*H)

TX Power

0.5~5dBm

RX Power

-28~-8dBm

External Power Supply

DC 9V /0.6A

Power Consumption

≤5.4w

Server, Client, DHCP Client List, Address Reservation, DHCP Relay

WAN Connection

PPPoE , Dynamic IP, Static IP, Bridge

Business Type

TR069, Internet

Quality Of Service

–

IP Version

IPv4, IPv6

Services

DHCP, Dynamic DNS

VPN Pass-through

–

ALG, IP Filter ,Port Filter, Mac Filter, URL Filter Port Forwarding， DMZ

Radvd, DHCPv6, MLD Proxy, MLD Snooping

Diagnostics

Ping, Ping6, Tracert, Tracert6

TR069

ACS, Connection request

–

Wireless

–

Bandwidth

–

Channel Range

–

Antenna

–

Easy Client Setup

–

Speed

–

Transmit Power

–

Wireless Functions

–

Wireless Security

–

SSIDs

–

Max Terminal Linked

–

Environment

Operating Temperature

0°c ~ 45°c

Storage Temperature

-40°c ~ 70°c

Operating Humidity

10% ~ 90% （Non-condensing）

Storage Humidity

5% ~ 90% (Non-condensing)

Others

Package Contents

1*HG1,1* Power adapter,1* Quick install guide

Download Here
