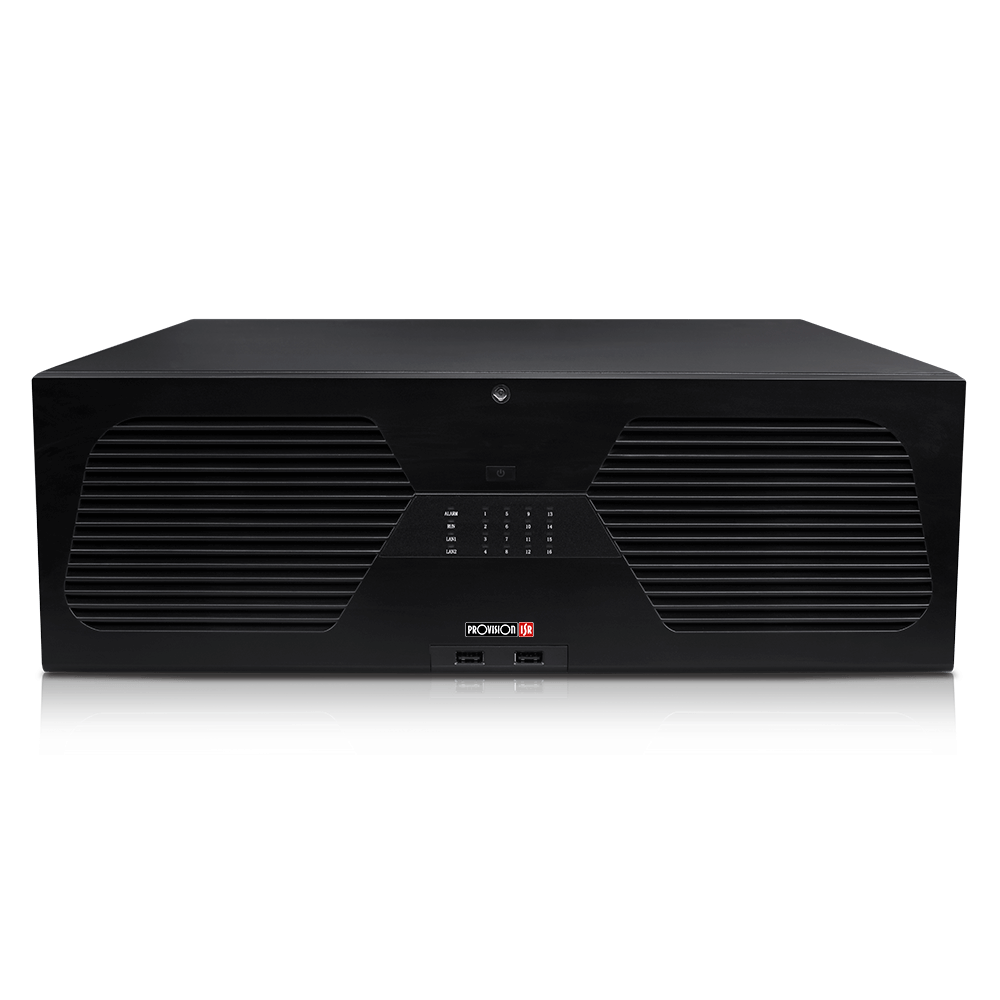

128CH 8MP NVR

Input: 128 Channel (Via Network) • Output: HDMI(4K) x 2 dual display mode• 3U Case, 16 HDD – Hot Swap • RAID Support • Audio In/Out • Alarm In/Out • 2 x 1000Mbps Network

NVR8-128RT(3U)

• Video:Input:  2 x RJ-45 Network (1000Mbps) Support

  Output: HDMI x 2 + VGA, Dual display mode

  HDMI1:4K, 1920×1080 (1080P), 1280×1024

  HDMI2 / VGA:1920×1080 (1080P), 1280×1024

• Bandwidth:Incoming: 384Mbps

  Outgoing: 384Mbps

• Decoding Support:H.265, H.264
• Recording:Resolution: 8MP & lower

  Real-Time 128CH 8MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1

  FPS:  3200(PAL) / 3840 (NTSC)

• Playback:16 Channels Simultaneously (locally), 9Channels (Remotlly).
• Audio: Two way audio


Input: 1 Channel + Depends on  Camera inputs

Output: 1 Channel on device (RCA)

• Alarm:Input: 8 Physical Alarm channels + IP Camera inputs

  Output: 4 Physical Alarm channels + IP Camera outputs only

• Storage:16 x SATA Hot swap (Up to 8TB Each)
• USB Port: total 3


1 x USB3.0, 2 x USB2.0

E-Sata x 1

• RAID 0/1/5/6/10 Support with Hot Swap.
• Network: 2 x RJ-45


2 x 1000Mbps
