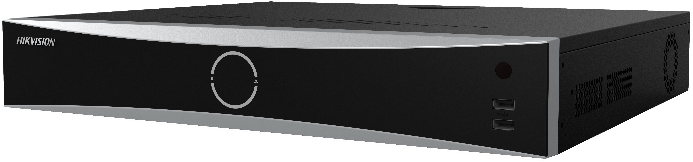

DS-7716NXI-I4/16P/S

16-ch 1.5U 16 POE AcuSense 4K NVR

• H.265+/H.265/H.264+/H.264 video formats
• Intelligent analytics based on deep learning algorithm
• Up to 4-ch perimeter protection
• Up to 1-ch facial recognition for video stream, or up to 4-ch facial recognition for face picture
• Up to 16-ch IP camera inputs
• Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
• Up to 16-ch 1080p decoding capability
• Up to 160 Mbps incoming bandwidth

Specification

System Parameter

Video Input Channel16

Incoming Bandwidth160 Mbps

Outgoing Bandwidth256 Mbps

Video Resolution12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Smart Analysis

Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)

List Library Capacity1w

List Library16

Face Picture Comparison4-ch face picture comparison alarm

Face Capture1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)

Video Parameter

Video Output2-ch HDMI, 1-ch VGA

HDMI OutputHDMI1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output HDMI2 output:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output

VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,

CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Live View Window Division1/4/6/8/9/16/25/32/36

Aux Port Window Division1/4/6/8/9/16/25/32/36

Video Decoding FormatH.265;H.265+;H.264;H.264+;MPEG4

Decoding Capability16-ch @ 1080p (30 fps)

Synchronous Playback16-ch

Audio Parameter

Audio Decoding FormatG.711ulaw;G.711alaw;G.722;G.726;MP2L2

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)

HDD Management

HDD No.4 SATA interfaces

Extended Storage1 eSATA interface

Recording Management

Playback ModeNormal/Smart, Event, Tag, Eternal File

External Port

Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Serial PortRS-485 (half-duplex), RS-232, Keyboard

USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm Input/Output16/4

PoE

PoE Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

PoE StandardIEEE 802.3 af/at

PoE Power≤ 200W

General Standard

Power≤ 360 W

Consumption (Without HDD)≤ 30 W

Working Temperature-10℃～＋55℃

Working Humidity10％～90％

Chassis1.5U

Dimension445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")

Weight (Without HDD)≤ 7 kg (15.4 lb)
