EOS 850D provides EOS digital SLR camera with advanced body control, optical viewfinder, APS-C size image sensor and advanced 45-point full cross autofocus system. These functions are very suitable for users to learn the operation of the camera, composition, the use of depth of field, and provide reliable auto focus when exploring different photographic subjects. For creative users, EOS 850D has a variety of multimedia creative functions such as image.canon that provides cloud storage services, vertical video shooting, 4K UHD video recording, and side-mounted multi-angle touch screen. Combining easy-to-learn and easy-to-understand functions such as a functional auxiliary image user interface, low power consumption design, EOS iTR AF that supports face detection in viewfinder shooting, and eye detection autofocus in live view shooting The ideal camera for users who learn photography and improve their photography skills.
Details
The compact body with emphasis on control adds the AF-ON button and the quick control dial that are generally only found in mid-range models, allowing users to operate the camera more freely
24.1 million pixels Canon APS-C CMOS image sensor
High-performance DIGIC 8 digital image processor
Standard ISO range 100-25600, expandable to ISO 51200 (H)
EOS 90D is equipped with the same 45-point full advanced cross-type AF sensor 1
The newly added 220,000-pixel RGB+IR metering sensor brings the EOS iTR autofocus 2 that is generally only found in high-end EOS models , and adds face detection function for viewfinder shooting
Real-time display with a two-pixel CMOS imaging autofocus (DAF) and provide about 100% (vertical) x 88% (the level of) a wide range of AF 3 and up to 3,975 automatic-focus position 4
DAF adds "Eye Detection Autofocus", which can continuously track the subject's eyes when shooting photos and movies. Autofocus) / 4.5 FPS (support follow focus) high-speed continuous shooting
12 kinds of SCN special scene modes, newly added "smooth skin" scene
Support CR3 RAW format and C-RAW (Compact RAW) format
Built-in Wi-Fi and low-power Bluetooth technology to connect to smartphones
Support 4K UHD 25p/23.98p movie 5 and 4K time- lapse movie 6 recording

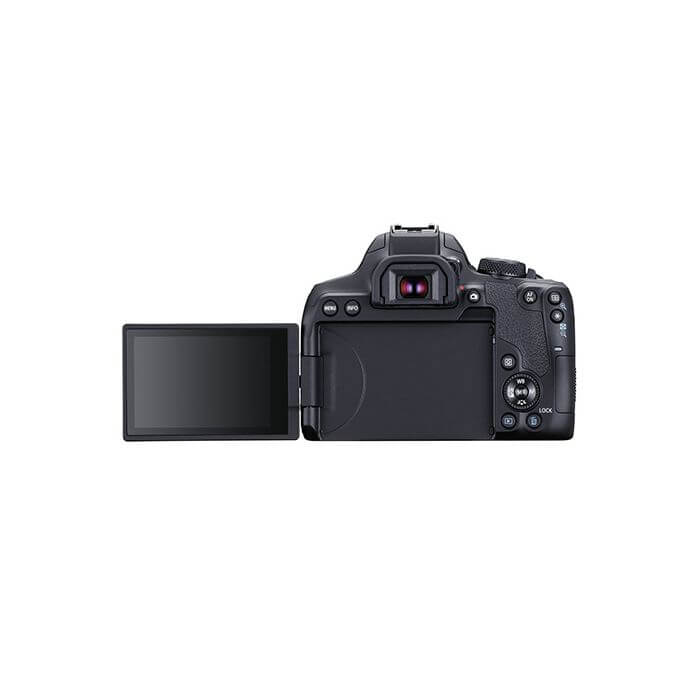

3-inch 1.04 million dots side-opening multi-angle Clear View II LCD touch screen
The number of battery shots is up to 1240 shots 7 (taken with the viewfinder
An automatic focus will automatically change the number and type of cross-focus lenses and the aspect ratio is set according to the use.
2 iTR: Intelligent Tracking and Recognition (intelligent Tracking and Recognition). This function can be applied when the auto focus area selection mode is set to area auto focus, large area auto focus, or auto selection auto focus.
3 Only applicable to compatible lenses.
4 when using the direction keys when the number of manually selected automatic focus pairs. If the auto focus range is set to automatic selection, the focus range will be divided into up to 143 zones.
5 4K video recording will use contrast detection autofocus. 4K recording will be performed by cropping the pixels in the center of the image sensor.
6 shoots up to 3,600, can be reduced when shooting movies 2 minutes maximum (NTSC) or two minutes 24 seconds (PAL). The recording format is MP4.
7 Use fully charged LP-E17 battery and do not use flash. According to CIPA testing standards.
Specification
| Pixel | 24.1 MP |
| Support memory card and capacity | SUPPORT SD (2GB), SDHC (32GB), SDXC (2TB) |
| Camera type | Autofocus and auto exposure digital single-lens reflex camera with built-in flash |
| Recording medium | SD / SDHC* / SDXC* memory card * compatible with UHS-I format |
| Image sensor size | Approximately 22.3 x 14.9 mm |
| Compatible lens | Canon EF series lenses (including EF-S series lenses) * Excluding EF-M and RF series lens series lenses (the lens focal length conversion factor is approximately 1.6 times the focal length shown on the lens) |
| Lens mount | Canon EF lens mount |
| Digital Image Processor | DIGIC 8 |
| Image sensor type | CMOS image sensor |
| Effective Pixels | 24.1 million pixels |
| Image sensor aspect ratio | 3:2 |
| Recording image type | JPEG, RAW (CR3, Canon RAW format) and C-RAW (CR3, Canon RAW format) |
| RAW+JPEG simultaneous recording | Have |
| File name | Camera presets |
| Color space | sRGB, Adobe RGB |
| Photo style | Auto, Standard, Portrait, Landscape, Fine Details, Neutral, Faithful, Monochrome and User Defined 1-3 |
| White balance setting | Auto (ambience priority), auto (white priority), preset (daylight, shade, cloudy, tungsten light, white light tube, flash), color temperature setting (2500 – 10000K) |
| Noise reduction function | Can be applied to high ISO sensitivity images and long exposure images |
| Automatic image brightness correction | Automatic brightness optimization |
| Highlight tone priority | Have |
| Brightness correction around the lens | Have |
| Lens chromatic aberration correction | Have |
| Viewfinder type | Eye-level pentamirror |
| Viewfinder coverage (horizontal/vertical coverage) | About 95% (at 3:2 aspect ratio) |
| Viewfinder magnification | About 0.82 times |
| Viewpoint | Approximately 19mm (calculated from the end of the eyepiece lens, -1 m-1) |
| Focusing screen | fixed |
| reflector | Fast rebound semi-transparent mirror |
| Auto focus type | TTL secondary image overlap, using dedicated auto focus sensor for phase difference detection |
| AF point | 45 points (Cross-type AF point: up to 45 points) *The available number of AF points, double cross-type focus points, and cross-type focus points vary depending on the lens used and the aspect ratio used. *The center AF point is at Double cross-type autofocus at f/2.8 (autofocus group: when using group A lens) |
| Focus brightness range | EV -3- 18 (Conditions: center f/2.8 AF point, One-Shot AF, room temperature, ISO 100) |
| Focus mode | (1) Single auto focus (2) Artificial intelligence servo auto focus (3) Artificial intelligence auto focus (4) Manual focus |
| AF point selection | (1) Manual selection: Single-point autofocus (2) Manual selection: Area autofocus (3) Manual selection: Large area autofocus (4) Automatic selection: 45-point autofocus |
| Metering mode | Approximately 220,000 pixels RGB+IR metering sensor and full-open TTL aperture 216-zone metering system (1) Evaluative metering (linked to any focus point) (2) Partial metering (covering about 6.5% of the viewfinder center area) (3) Spot metering (covering about 2.0% of the area in the center of the viewfinder) (4) Center-weighted average metering |
| Metering range | EV 1-20 (room temperature, ISO 100) |
| Exposure control | Basic shooting zone modes: Intelligent automatic scenes, special scenes (food, children, candlelight, night portrait, handheld night scene, HDR backlight control, portrait, group photo, landscape, close-up, sports, smooth skin), creative filters (rough black and white, Soft focus, fisheye effect, toy camera effect, model effect, watercolor painting effect, HDR standard art effect, HDR vivid art effect, HDR oil painting art effect, HDR embossed art effect) Creative shooting zone mode: |
| ISO sensitivity range (recommended exposure index) | ISO 100-ISO 25600, expandable to H (equivalent to ISO 51200) |
| High dynamic range shooting | Have |
| Shutter type | Electronically operated, focal plane shutter |
| Shutter speed | 1/4000 second to 30 seconds (the entire shutter speed range, the available range varies with the shooting mode), B shutter, flash sync speed 1/200 second |
| Built-in flash type | Retractable, manual pop-up flash |
| Flash metering | E-TTL II auto flash |
| Built-in flash guide number | 12 (ISO 100, in meters) |
| Wireless flashing main control function | Have |
| Built-in flash coverage | Approximately 17mm lens angle of view |
| Compatible with external Speedlite flash | EX and EL series external flash |
| External flash setting | (1) Built-in flash function setting, external flash function setting, external flash custom function setting (2) Support light pulse wireless flash control |
| Drive mode | Single shot, high-speed continuous shooting, low-speed continuous shooting, Selfie: 10 seconds / remote control, Selfie: 2 seconds / remote control, Selfie: continuous shooting |
| Continuous shooting speed (approximately) | The fastest is about 7.0 frames per second* (the fastest is about 7.5 frames per second during live view shooting) *According to the flicker prevention shooting setting, use servo auto focus (SERVO AF) during live view shooting, and use an external device for live view shooting Flash, the maximum continuous shooting speed during high-speed continuous shooting may become slower * Depending on the type of power source, battery level, temperature, flicker prevention shooting settings, shutter speed, aperture, subject condition, brightness, focus operation, lens used, and lens used Conditions such as flash, shooting settings, etc., the maximum continuous shooting speed during high-speed continuous shooting may become slower |
| Live view shooting | Have |
| Live view mode focus | Dual Pixel CMOS AF (Dual Pixel CMOS AF) (1) Face + Tracking (2) Focused auto focus (3) Single point auto focus (4) Area auto focus (5) Manual focus (5 times / 10 times available) For focus check) |
| Live display mode Metering mode | (1) Weighted metering (384 zones) (2) Partial metering (approximately 5.8% of the real-time display screen) (3) Spot metering (approximately 2.9% of the real-time display screen) (4) Center-weighted average metering |
| Real-time display mode metering range | EV -2-20 (room temperature, ISO 100, single auto focus) |
| Movie shooting function | Have |
| Movie compression | [Video] MPEG-4 AVC / H.264 variable (average) bit transmission rate MP4: AAC |
| Short film compression method | IPB (standard), IPB (lightweight) *Time-lapse movie: ALL-I |
| Audio recording format | AAC |
| Record size and number of video frames | 4K Ultra HD: 23..98p/ 25.00p Full HD: 59.94p /50.00p/29.97p/25.00p/23.98p HD: 59.94p /50.00p 4K Time-lapse movie: 29.97p/ 25.00p Full HD time- lapse movie : 29.97p/ 25.00p |
| Short film | Can be set to 4 seconds/6 seconds/8 seconds |
| recording | Built-in stereo microphone, with external stereo microphone terminal to adjust the sound recording volume, with wind filter, with attenuator |
| LCD screen type | Multi-angle multi-touch "Clear View II LCD" TFT color LCD screen |
| LCD screen size | 3.0 inch |
| LCD screen points | About 1,040,000 points |
| LCD screen angle adjustment | Yes, side exposure |
| Processing RAW images in the camera | Have |
| Creative filters | Rough black and white, soft focus, fisheye effect, oil painting art effect, watercolor painting effect, toy camera effect, model effect |
| Reset image size | Have |
| Custom function | 14 custom functions |
| Remote control terminal | Compatible with remote control switch RS-60E3 |
| remote control | Compatible with wireless remote control BR-E1 |
| Wireless network function | Have |
| battery | LP-E17 battery |
| boot time | About 0.3 seconds (according to CIPA testing standards) |
| Dimensions (width x height x depth) | 131.0 (W) x 102.6 (H) x 76.2 (D) mm |
| Weight (approximately) | About 515 grams (CIPA test standard) about 471 grams (net body) |
EOS 850D package contents

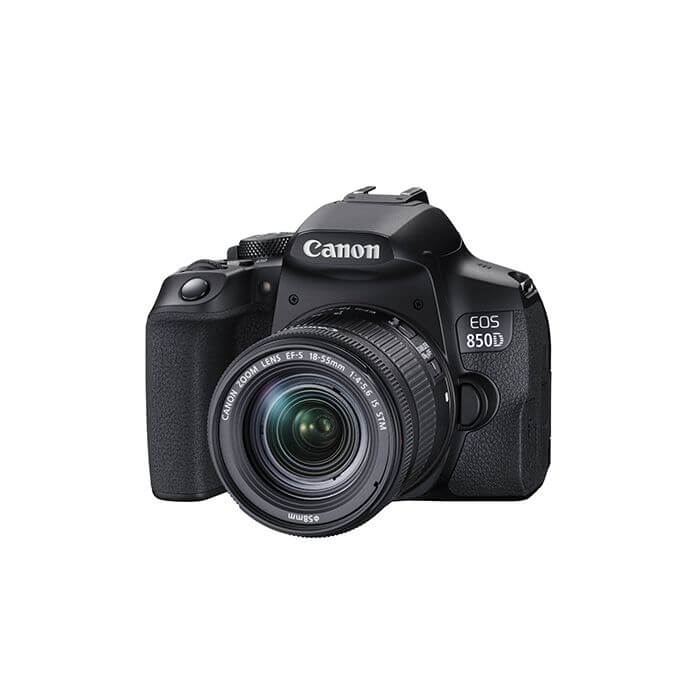

EOS 850D with EF-S 18-55mm f/4-5.6 IS STM lens set
-EOS 850D body
-EF-S 18-55mm f/4-5.6 IS STM lens
-Battery LP-E17 with power cord
-Charger LC-E17E
-Camera strap EW-400D-N
-Camera manual
-Product record card (body)
-Product record card (lens)
