לפניך 5 שלבים לבניית מערכת אינטרקום
1) בחר מודול מצלמה ובקרת כניסה 2) בחר מספר לחצנים לפי ממספר דירים 3) בחר קופסא ומסגרת על הטייח /תחת הטייח
4) בחר מוניטור IP דור 2 5) בחר מוניטור 2 גידים
מודולרי סדרה 4202

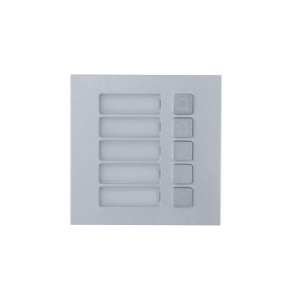

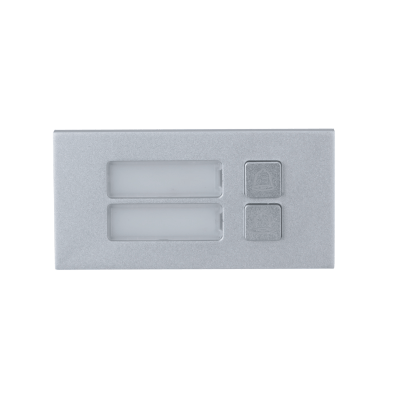

VTO4202F-MB5 5 לחצן קריאה 5-button module | VTO4202F-MB2 2 לחצן קריאה 2-button module | VTO4202F-MB1 1 לחצן קריאה 1-button module | דגם יצרן |
מודול 5 לחצנים | מודול 2 לחצנים | מודול לחצן | תאור מוצר |
5V DC Provided with power by other modules | מתח נדרש | ||
10 X 10/5 X 2.8 | 10 X 10/5 X 2.8 | 10 X 10/5 X 2.8 | מידות בס"מ |
VTO4202F-MF | VTO4202F-MK | VTO4202F-MS | VTO4202F-P
| דגם יצרן |

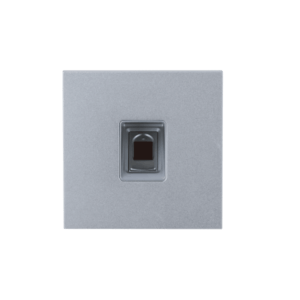

Fingerprint module מודול טביעת אצבע
| Keyboard module מודול מקודד/חיוג ישיר | Display module LCD מודול תצוגה | Camera module מודול מצלמה – | תאור מוצר |
\ | \ | 2MP "1/2.5 | מצלמה | |
\ | \ | VTM125, VTM126 | קופסא על הטיח | |
\ | \ | VTM127, VTM128 | קופסא תחת הטיח | |
5V DC Provided with power by other modules | 12V DC, PoE802.3af | מתח נדרש | ||
10 X 10 X 2.8 | 10 X 10 X 2.8 | 10 X 10 X 2.8 | 10 X 10 X 2.8 | מידות בס"מ |

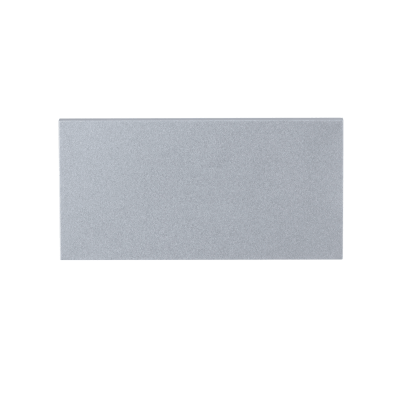

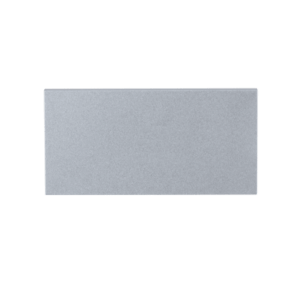

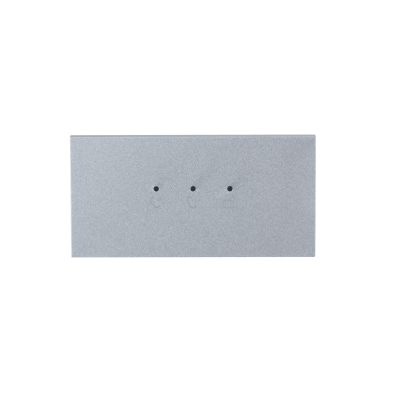

VTO4202F-MN Blank module | VTO4202F-ML Indicator module | VTO4202F-MR Card module | דגם יצרן |
מודול שלט ריק | מודול לדים | מודול קרבה | תאור מוצר |
5V DC Provided with power by other modules | מתח נדרש | ||
10 X 5 X 2.8 | 10 X 5 X 2.8 | 10 X 5 X 2.8 | מידות בס"מ |
VTM128 | VTM127 | VTM126 | VTM125 | דגם יצרן |
קופסא על הטיח/מתחת הטיח ל3- מודולים | קופסא על הטיח/מתחת הטיח ל2- מודולים | מסגרת ל3- מודולים | מסגרת ל2- מודולים | תאור מוצר |
\ | \ | \ | \ | מתח נדרש |
33.3 X 13.3 X6.8 | 23.3 X 13.3 X 6.8 | 34 X 14 X 7 | 24 X 14 X 7 | מידות בס"מ |
Modular Outdoor Station
> Modules make the device with great expansibility
> Anodized front aluminum panel; IK07
> Supports voice and video communication
> 2 MP high definition fisheye camera with 160° view range
> Access control function; controls two locks
> Compatible with 2-wire interface and RJ45 interface
> Surface mount and flush mount
> IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
Technical Specification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

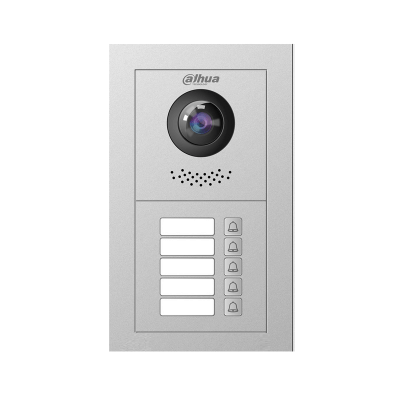

Model | DHI-VTO4202F-P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | SoC processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System | Embedded Linux operation system | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | IPv4, RTSP, RTP, TCP, UDP, SIP, P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Basic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera | CMOS Low illumination 2MP HD colorful 160° fisheye camera | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View | H:160°, V:82°, D:180° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 1.95 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | WDR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | Noise suppression and echo cancellation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Encoding | H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate | PAL: 25 fps; NTSC: 30 fps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | 256K to 2M | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Light Compensation | IR light | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night Switch | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Encoding | PCM G.711 A G.711 U | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input | Built-in omnidirectional microphone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output | Built-in loudspeaker | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate | 16Khz 16bit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Function | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Communication Methods | Digital communication | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Unlock Mode | Remote unlocking | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Snapshot | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Leave Videos or Text Messages | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Configuration | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Housing Material | Aluminum | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 Port | 1 RS-485 half-duplex port | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output Port | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output Port | 1-ch 12 VDC output 100mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Unlock Button | Exit button for opening the door | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Status Detection | Detects door magnetic status | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Door Lock Control | NC/COM/NO | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet Port | 10/100 Mbps self-adaptive Ethernet/2-wire | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tamper Alarm | Tamper alarm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regular | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection | IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color | Silver | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Housing Material | Aluminum | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply Mode | 12 VDC/2-Wire IP Inteface/PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation Method | Surface mount and flush mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accessory | Mounting box | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 100mm×100mm×49.30mm (3.94"×3.94"×1.94") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade | IK07, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Temperature | -20°C to +60°C (-4°F to +140°F ) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Humidity | 10%RH–90%RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | ≤12W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.35kg (0.77 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.4kg (0.88 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model | DHI-VTO4202F-MK | DHI-VTO4202F-ML | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | Embedded MCU processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button Type | Metal backlight keyboard (0–9, *, #) | – | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicator | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Indicator Lights | – | 3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output Port | 5V DC (Provide power for other modules) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regular | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply Mode | 5V DC (Provided with power by other modules) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color | Silver | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 100mm×100mm×31mm (3.94"×3.94"×1.22") | 100mm×49.90mm×28.50mm (3.94"×1.96"×1.12") | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade | IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | -20°C to +60°C (-4°F to +140°F ) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 10%RH–90%RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 1W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model | DHI-VTO4202F-MR | DHI-VTO4202F-MS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | Embedded MCU processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Card | 10000 | – | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Display | – | 3.0 inch STN display | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output Port | 5V DC (Provide power for other modules) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regular | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply Mode | 5V DC (Provided with power by other modules) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color | Silver | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 100mm×49.90mm×28.50mm (3.94"×1.96"×1.12") | 100mm×100mm×28.50mm (3.94"×3.94"×1.12") | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade | IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | -20°C to +60°C (-4°F to +140°F ) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 10%RH–90%RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 1W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model | DHI-VTO4202F-MN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regular | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance color | Silver | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 100mm×49.90mm×28.50mm(3.94"×1.96"×1.12") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection grade | IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
Model | DHI-VTO4202F-MB1 DHI-VTO4202F-MB2 | DHI-VTO4202F-MB5 | DHI-VTO4202F-MF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | Embedded MCU processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Capacity | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Fingerprint | – | 3000 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button Type | Mechanical button | – | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Output Port | 5V DC (Provide power for other modules) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regular | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply Mode | 5V DC (Provided with power by other modules) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color | Silver | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 100mm×49.90mm ×30.50mm (3.94"×1.96"×1.20") | 100mm×100mm ×31mm (3.94"×3.94"×1.22") | 100mm×100mm ×38.50mm (3.94"×3.94"×1.52") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade | IK07; IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | -20°C to +60°C (-4°F to +140°F ) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | 10%RH–90%RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 1W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Appearance Color | Silver |
