מערכת למדידת טמפרטורה הכולל זיהוי פנים

המחיר שלנו

מק"ט טרמינל 2000 קטגוריה
מחיר משלוח: דואר שליחים עד 5 ק"ג: ₪50
התמונות באתר להמחשה בלבד
יש לעיין במפרט טכני יצרן

תיאור

מערכת למדידת טמפרטורה הכולל זיהוי פנים

טרמינל 2000

מערכת טרמינל 2020 מודדת חום בצורה אוטומטית ומזהה אי חבישת מסכה.
מדידת החום אורכת כחצי שניה בלבד. אם טמפרטורת הגוף של הנבדק גבוהה מ 38° תשמע התראה קולית בעברית.

טרמינל 2020 קלה להתקנה ויכולה לשמש גם כמערכת בקרת כניסה לעובדים ולמורשים כולל רישום ושעת הכניסה.





תכונות עיקריות טרמינל 2000טווח מדידת טמפרטורה: 0.5-1.0 מטר, דיוק מירבי ב 0.75 מ'
טווח זיהוי פנים: 0.5-2.2 מטר
טווח סטיית טמפרטורה מכסימלי: 0.3ºC
טווח סטייה ממוצע: 0.1ºC
כמות רשומות מכסימלית לתווי פנים: עד 30,000 רשומות
אחוז דיוק זיהוי תווי פנים: 99.5%
זמן זיהוי פנים: 0.2 שנ'
זמן מדידת טמפרטורה: 0.4 שנ'
תכונות חשמליות ונתונים פיסיים
רזולוציית מצלמה: 2 מגה פיקסל
מוגן מים בתקן IP66 ומותאם לעבודה בתנאי חוץ

מערכת הפעלה: לינוקס
מסך 7 " ברזולוציה של 1024×600 פיקסלים
מתח עבודה: 12VDC
מוצאים: 2 יציאות מגע יבש +יציאת RS485
מידות המסך: 219x111x21.5mm
מידות הזרוע: 33x189mm

יתרונות המוצר
מוצר All-In-One הכולל זיהוי פנים, ומדידת טמפרטורה מדוייקת במוצר אחד
מדידת טמפרטורה ללא מגע וללא קרבה פיסית של השומר/מאבטח
ביצוע מדידות הטמפרטורה בזמן קצר ביותר ללא יצירת צווארי בקבוק
רמת דיוק גבוהה
PDFשמירת הנתונים של תווי הפנים והטמפרטורה באופן אוטומטי

Ai Super-Precision Human Body Temperature Measuring and Face Recognition Machine

Product Overview
AI ultra-precision human body temperature measuring face recognition machine is with high-performance, high-reliability.
Based on infrared thermal imaging technology and relying on deep learning algorithms, it has fast recognition speed, high accuracy, and fast Capture the face information for a 1: N comparison.
During face recognition, the human body temperature will be collected for temperature measurement. It can be used with personnel passages to achieve the rapid movement of personnel and the control of entry and exit of personnel, maximizing the efficiency of epidemic prevention.
Product Advantages
1-The Traditional Temperature Measuring Gun Needs To Be
Held By A Person, And The Efficiency Is Low;
2-All-in-one Face Temperature Measuring Machine,
Automatic Temperature Measurement By Facial Scanning,
Saving Manpower And Improving The Efficiency;
3-Among Mobile People, People Without Masks Can Be
Accurately Detected;
4-By facial scanning, it can automatically record personal
information and check the records of relevant people going
in and going out, so that it is convenient for personnel's to be
checked again
5-Automatically record abnormal temperature information of
the human body and automatically count relevant person;
6-Adopt deep learning algorithm, support 30,000 face
database, 200ms speed recognition, to achieve the rapid
movement of personnel

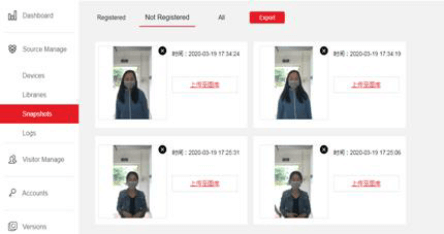

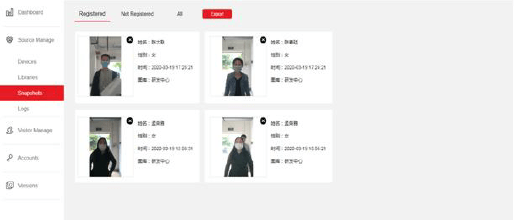

7-Support data network upload, the device comparison results
and snapped photos can be uploaded to the platform for realtimestorage, and data can be continuously uploaded even if
the network is off.
Product Parameter

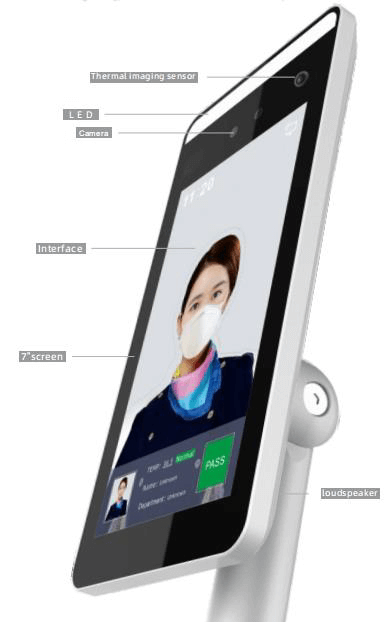

Camera: 2 Megapixel resolution
Operating system: Linux
Display: 7 inch IPS hd1024* 600,300 CD /m2
Hardware interface: RS485, RS232, RJ45, relay output
Fill light lamp: infrared fill light, white light fill light
Rated voltage: DC 12V input

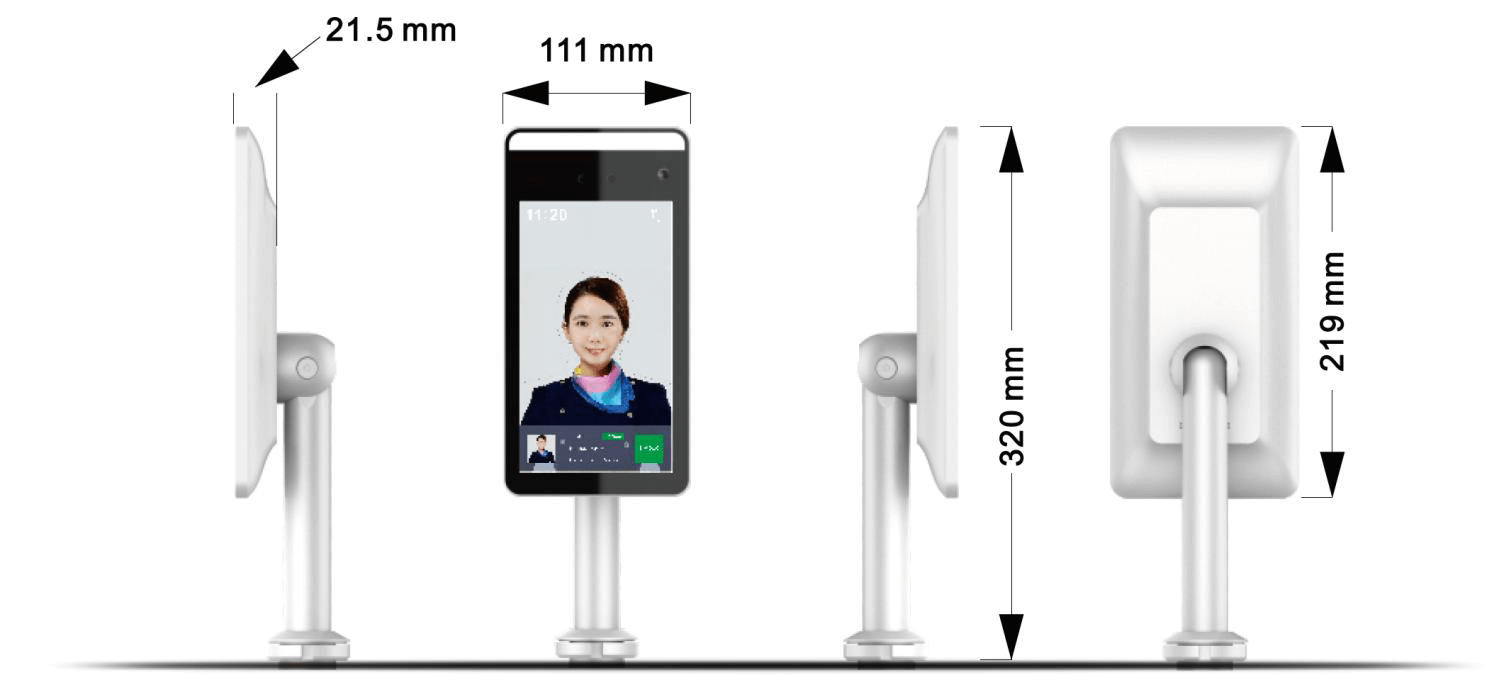

Panel size: 219x111x21.5mm
Stand size: 33x189mm
Work Environment
Installation scene: school, community, construction site,
government, office building, etc
Operating temperature: -20℃-60℃
Working humidity: 10%-90% no condensation

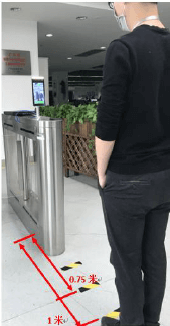

Equipment Installation
1.Open a hole with a diameter of D = 35mm on the turnstile
gate, and the recommended position of hole is on the 1/3 to
1/4 of the turnstile gate nearto the entrance end
2. Insert the bracket of the ALL-IN-ONE Face temperature
measuring machine into the hole of the turnstile gate, and fix the
device nut from the inside of the Turnstile gate
3.Adjust the device to an appropriate angle (vertical angle of 5 °
15 °);





Equipment Installation
1.Open a hole with a diameter of D = 35mm on the turnstile gate, and the recommended position of hole is on the 1/3 to 1/4 of the turnstile gate neartothe entrance end
2. Insert the bracket of the ALL-IN-ONE Face temperature measuring machine into the hole of the turnstile gate, and fix the device nut from the inside of the Turnstile gate
3.Adjust the device to an appropriate angle (vertical angle of 5 °-15 °);
Wire

Wire Definition
